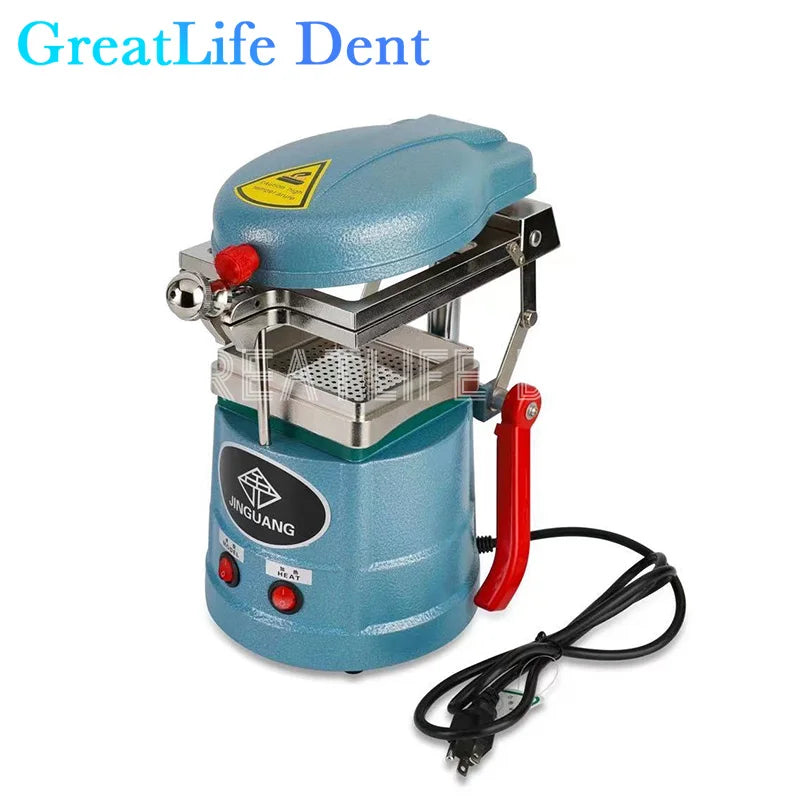

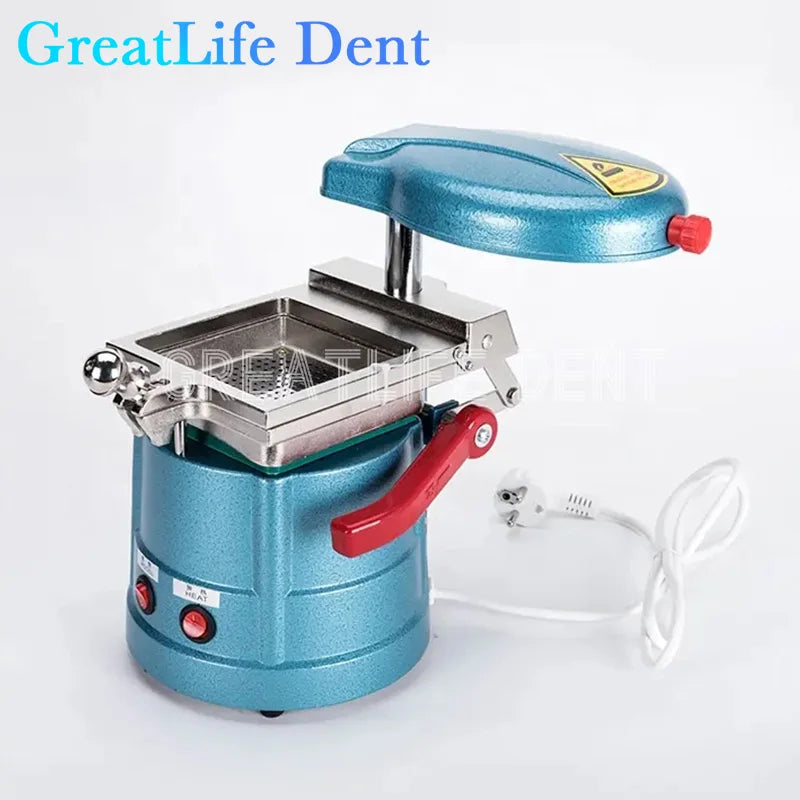

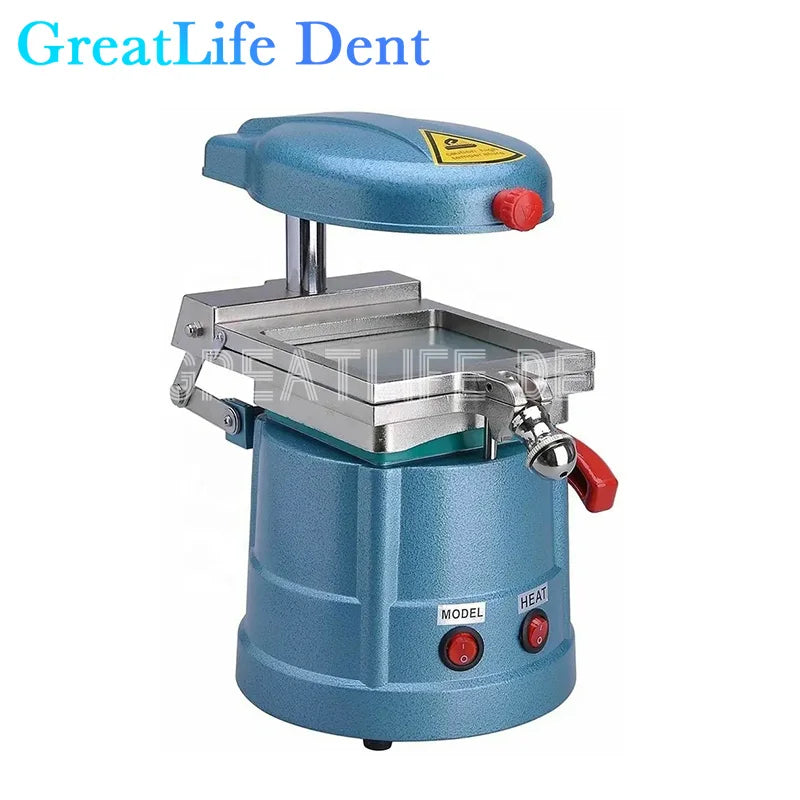

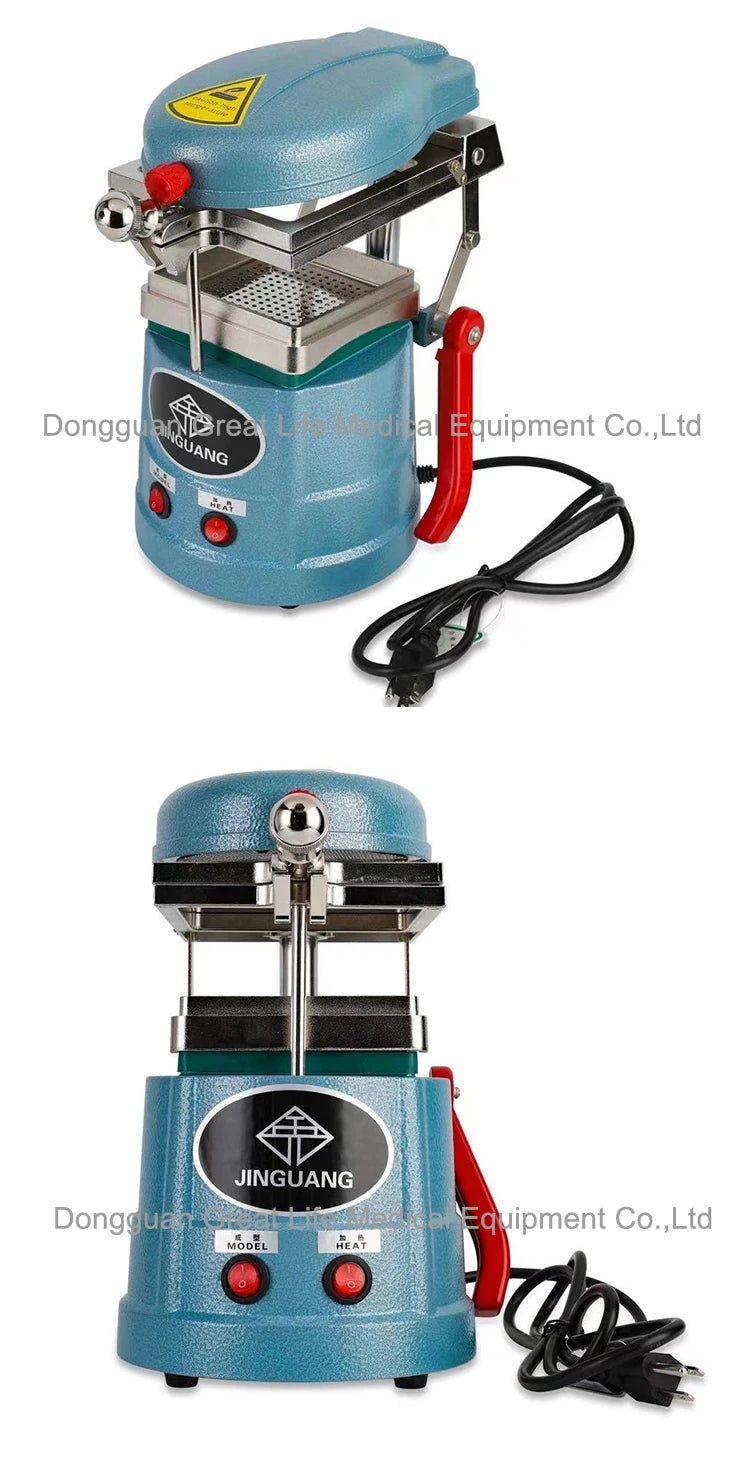

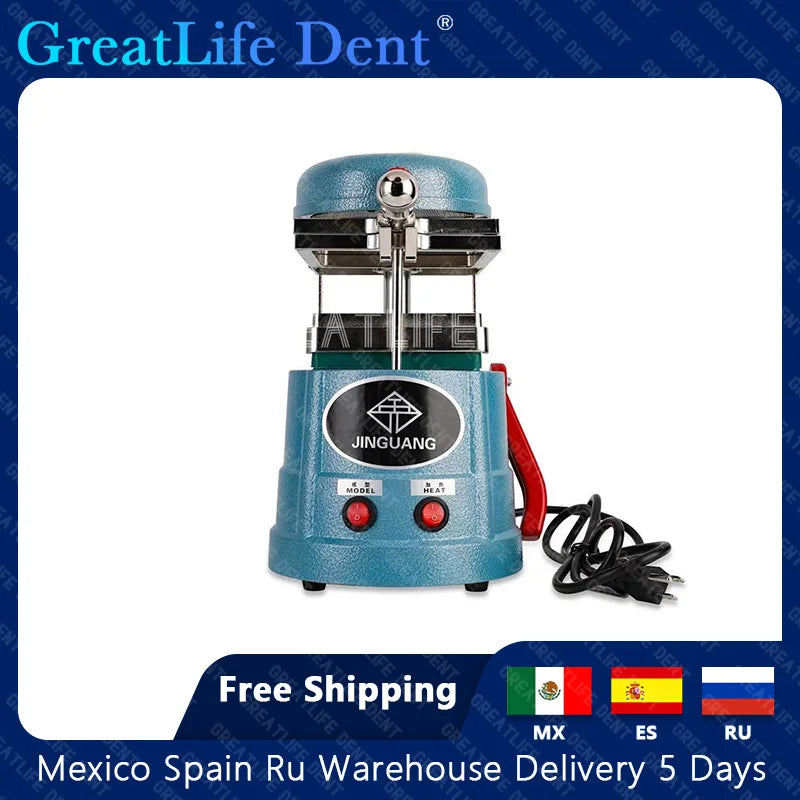

GreatLife Dent Dental Lab Vacuum Forming Molding Machine Thermoforming Vacuum Former Dental Laminator Former Machine For Dentist
SPECIFICATIONS
Brand Name: GreatLife Dent
Commodity Quality Certification: GS（消费电子）,3C,UL（纺织品）
Feature 1: dental vacuum
Feature 10: vacuum laminator
Feature 11: dental laboratory vacuum
Feature 12: vacuum thermoforming machine
Feature 13: vacuum dental molding machine
Feature 14: vacuum forming machine thermoforming
Feature 2: thermoforming machine
Feature 3: vacuum forming machine
Feature 4: thermoforming
Feature 5: vacuum dental
Feature 6: vacuum forming
Feature 7: dental vacuum laminator
Feature 8: vacuum former
Feature 9: dental vacuum forming machine
Hign-concerned Chemical: None
Material: Metal
Model Number: Dental Vacuum Forming-3
Origin: Mainland China
Thermoforming Machine Dental Lab Vacuum Forming Molding Dental Vacuum Former Vacuum Forming Machine Dental
Specifications
Type:Dental Vacuum Forming & Molding Machine
Voltage:220V/50Hz ± 10%; 110V/60Hz ± 10%
Power:1000W
Dimensions:25*21*30CM
Weight:6KG
User Manual
1. Nct the machine with powe 220V/50Hz 110V/60Hz, check the status of vacuum motor and electric heating device.

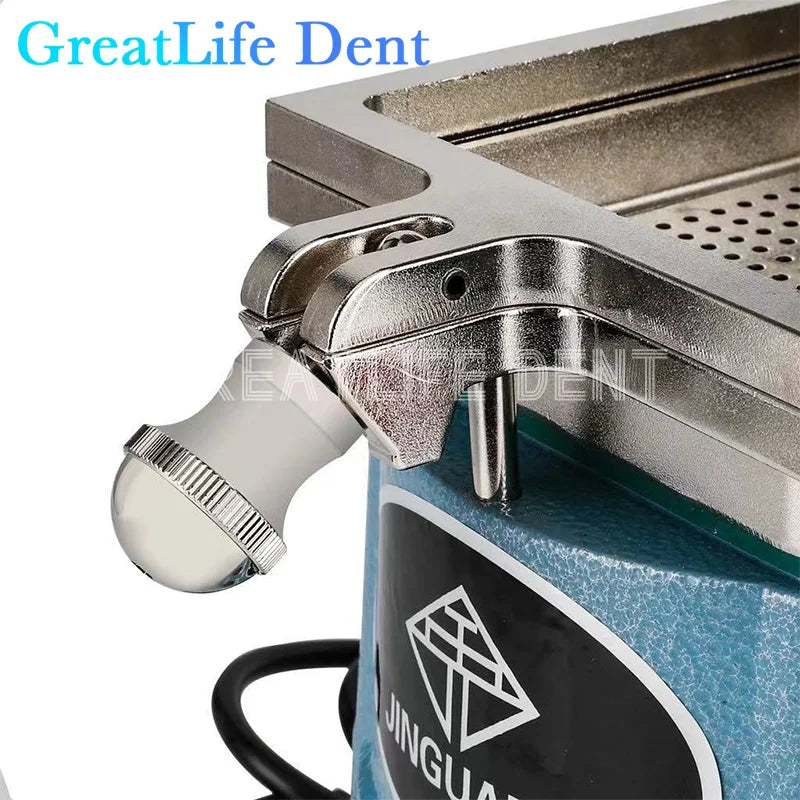

2. Trn the upper cover 90°(from left or right side), put a film between upper and nether frame and switch the knob to close the frames tightly. Turn the upper cover back and push down the elevating wrench to elevate the frame to

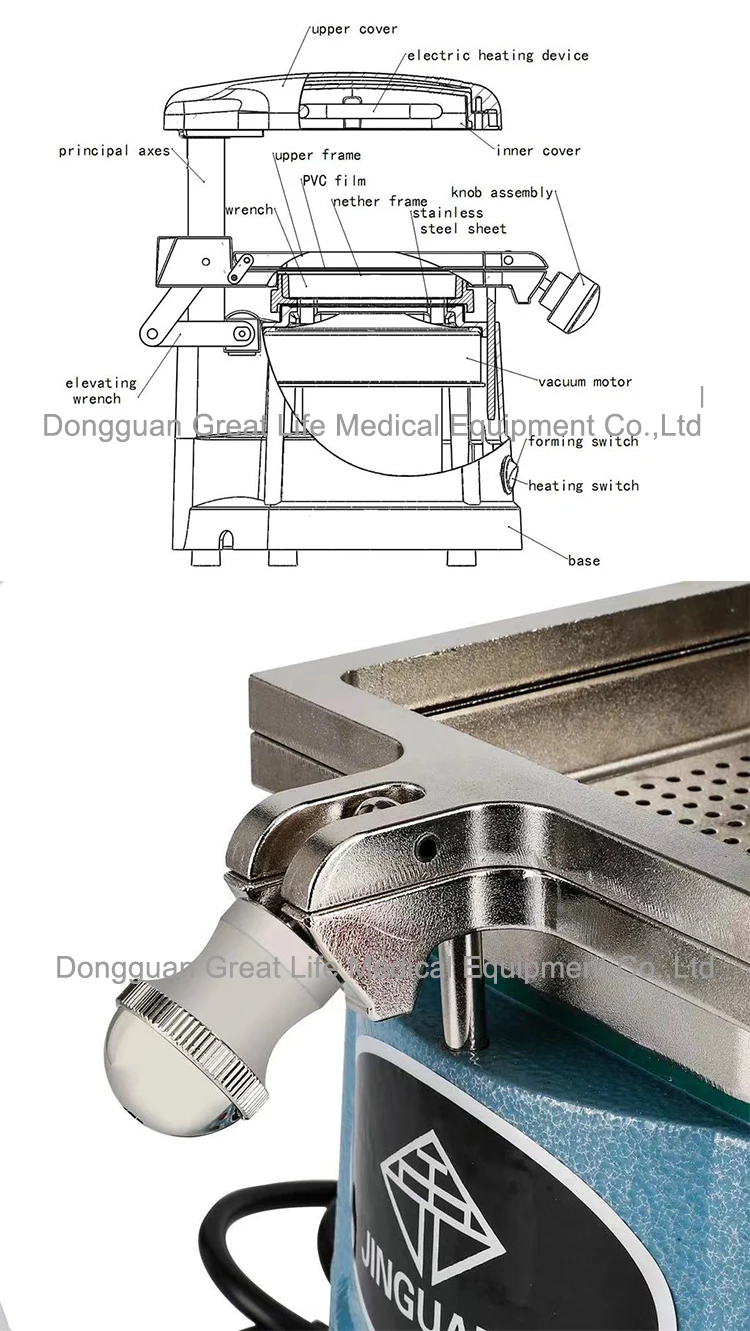

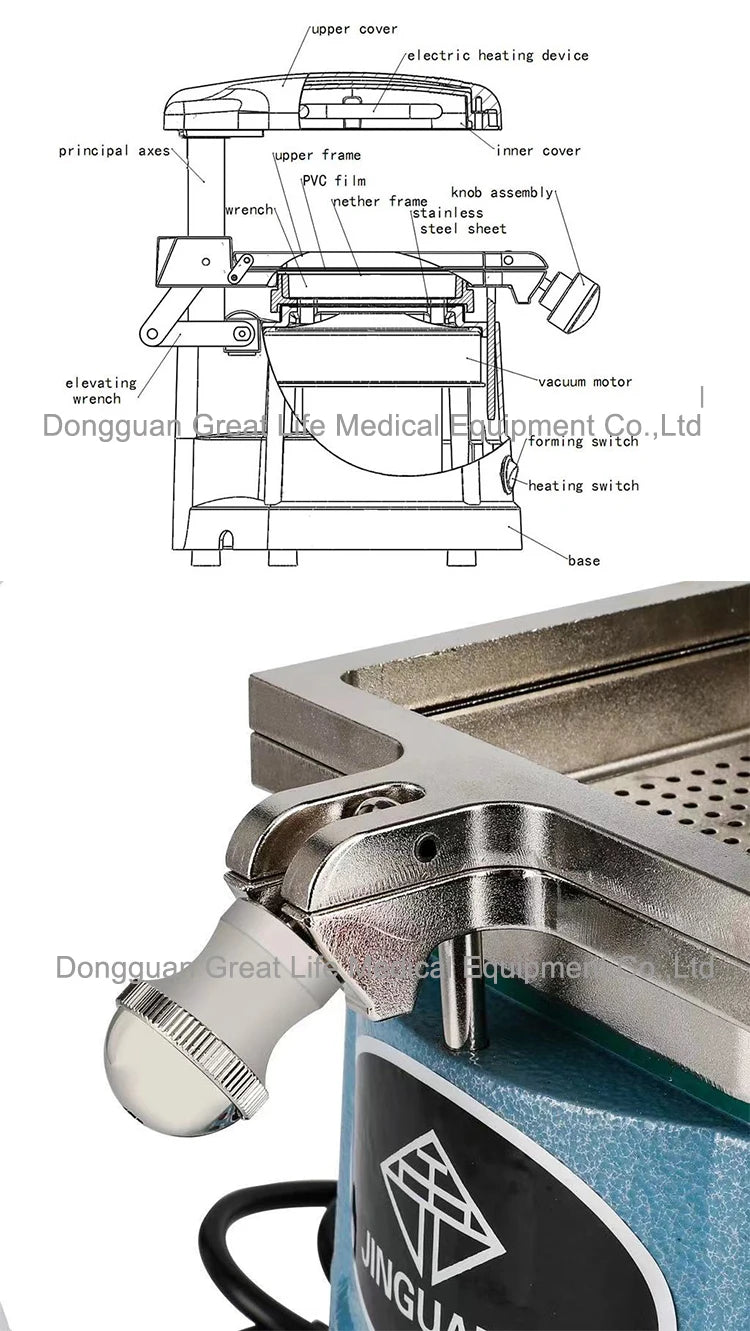

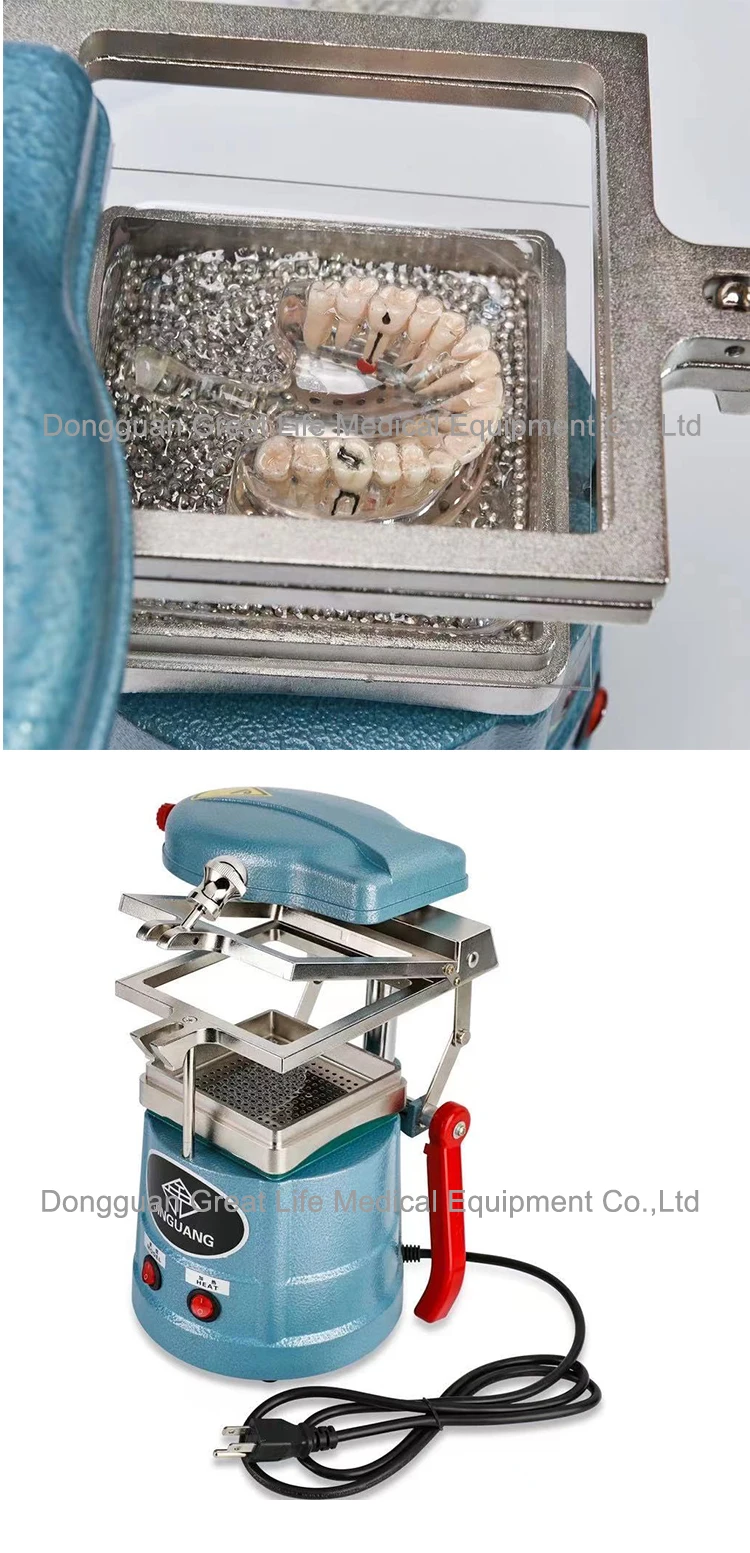

working position (there is a position holder on the principal axes). Then put the product in the middle of the sheet and switch on the heating device to heat the film. Switch off the heating device (about 2-3 minutes later), when the lower surface of the film is under the nether frame about 1cm. Switch the elevating wrench to set down the frame and turn on the vacuum motor, take the product out after forming. Below is the structure of the machine for reference.

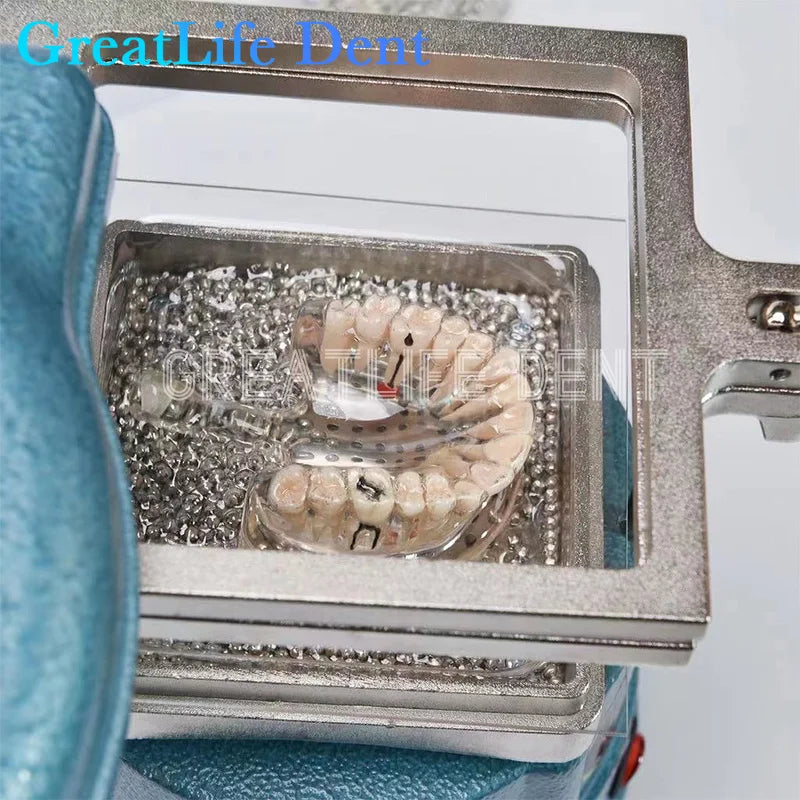

3. Stochastic steel ball's use and application method: Takes down the aluminum box, the model laying aside, then does not need with the steel ball to take shape the part to bury, places in again the radio station.
Application Range
1. Decolorization braces forming and production
2. Orthodontic appliances remain, arch molding and plywood production
3. Periodontal disease, fluoride treatment and production of the molding tray
4. Temporary, permanent base, dental care of the molding and production
